74116
Dual 4-bit latch with clear

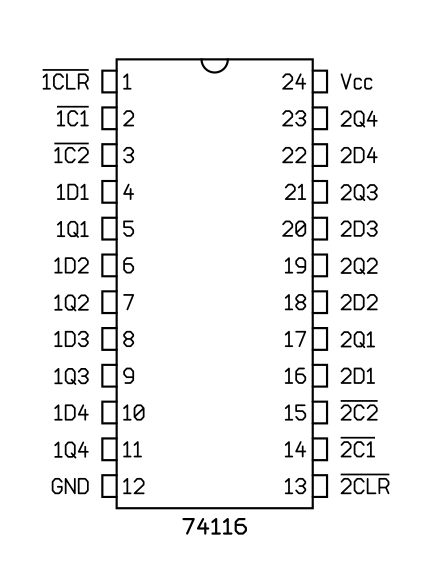

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74116N
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
