7483
4-bit binary full adders with fast carry
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN7483AN
PDIP-16 (JEDEC MS-001, Variation BB)

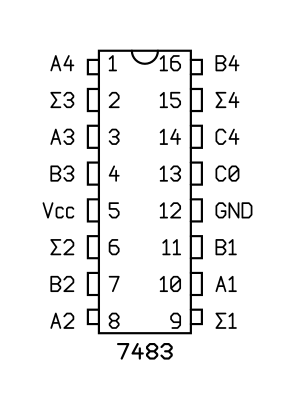

package diagram
