Category:

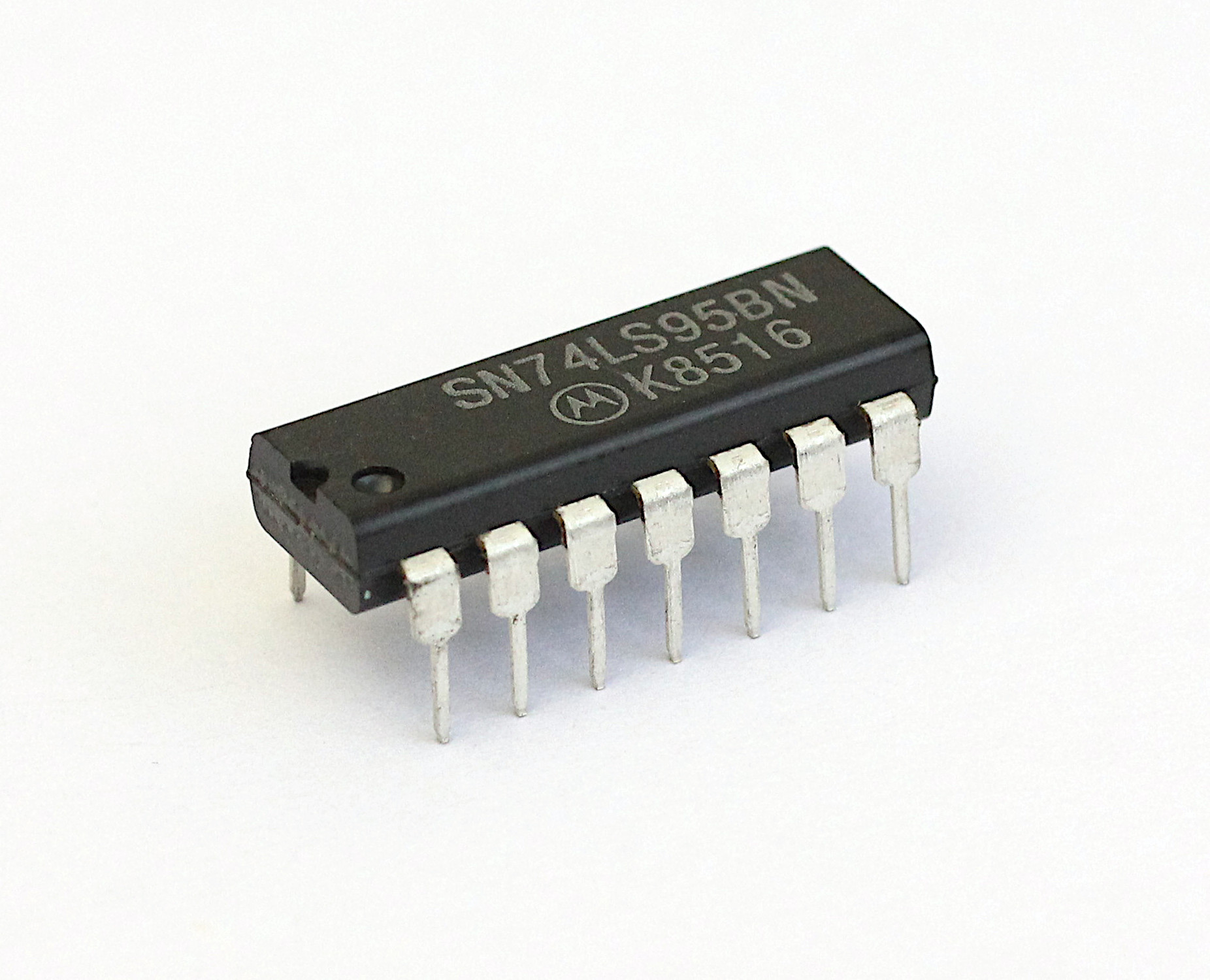

Name:74LS95
Short description:4-bit parallel-access shift register

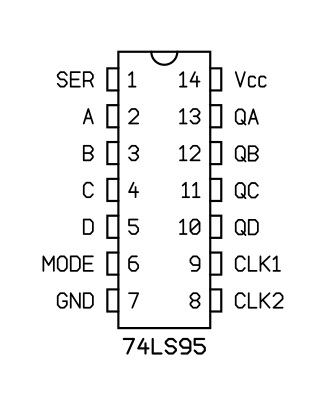

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN7495BN
