Name:74LS02
Short description:Quad 2-input NOR gate

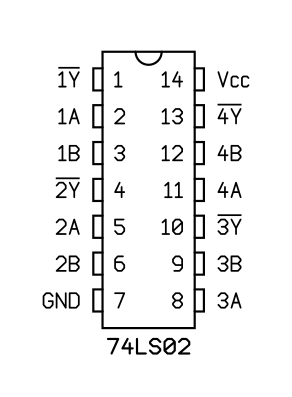

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS02N
