Name:74LS589
Short description:8-bit shift register with input latch and 3-state output
Symbol:

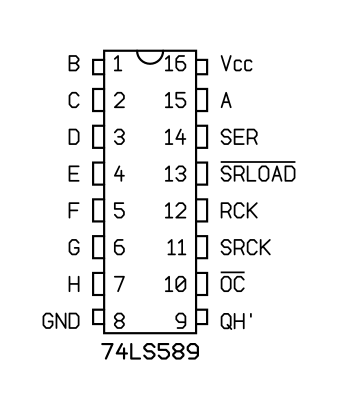

Pinout: Default Style: GOST

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS589N
