ZX Spectrum ULA 6C
Uncommitted Logic Array which controls most of the interfaces between the Z80 CPU and peripheral functions
Pinout:
Default
Style:

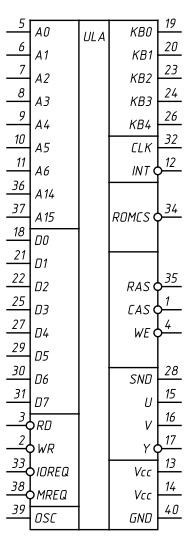

GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

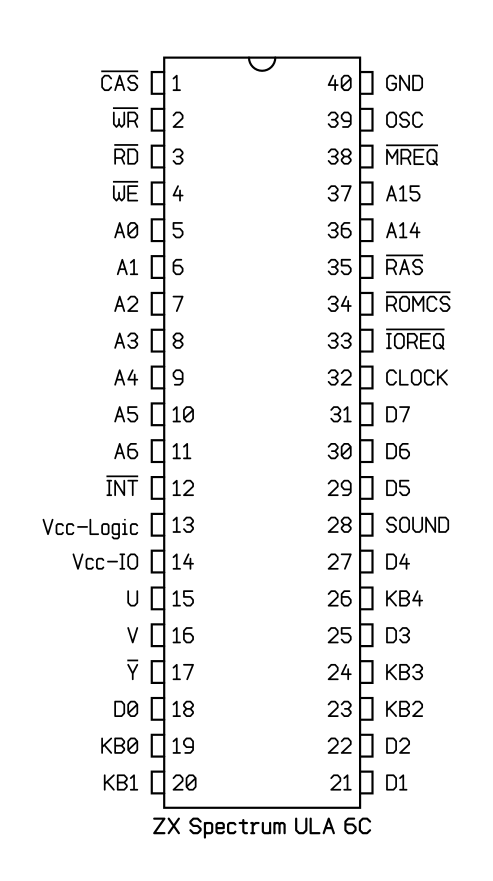

Pinout
Manufacturer:
Ferranti
Part number:
6C000IE-6
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
