2048 bit static MOS RAM with I/O ports and timer for 8085A and 8088 CPU

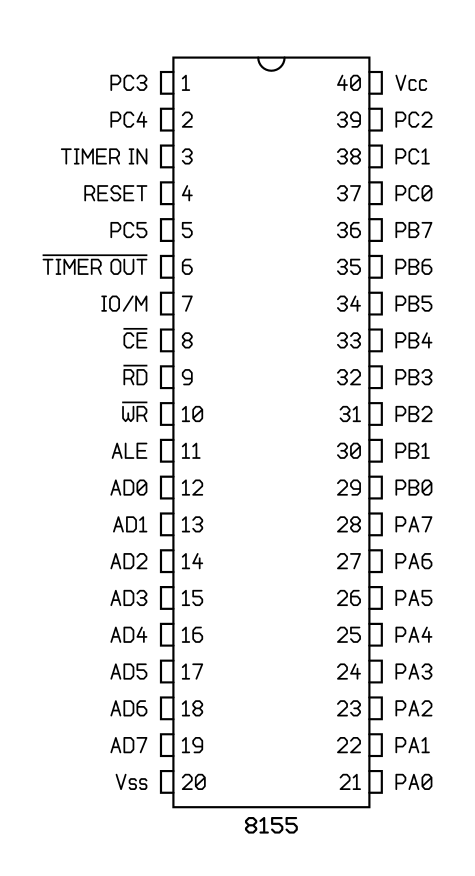

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)
Pinout
Manufacturer:
Intel
Part number:
P8155H
Manufacturer:
Intel
Part number:
P8155H-2
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
