Name:74285
Short description:4-bit by 4 bit parallel binary multiplier (low order 4 bits of product)

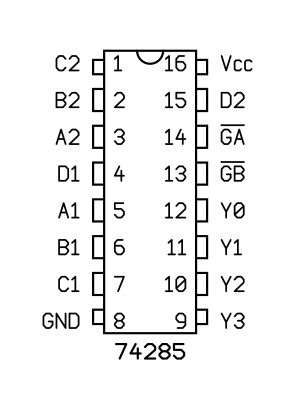

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74285N
