74273
Octal D-type flip-flop with clear

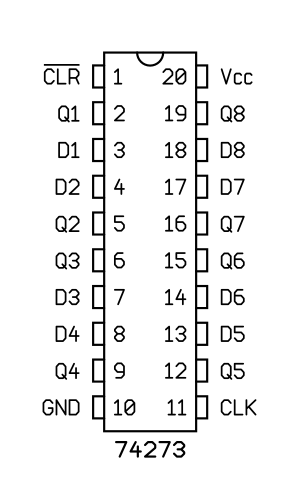

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74273N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
