Name:74LS244
Short description:Octal buffer and line driver with 3-state outputs
Symbol:

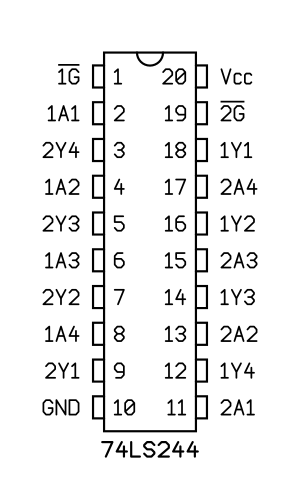

PDIP-20N (JEDEC MS-001, Variation AD)

VendorPart number / Specifications
Texas InstrumentsSN74LS244N
