74199
8-bit shift register
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)

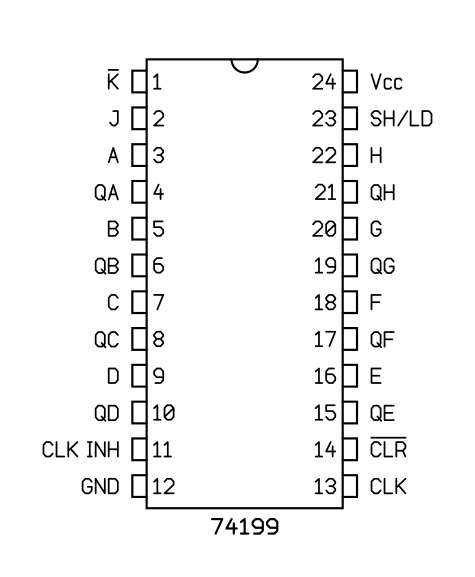

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74199N
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
