74159
4-line to 16-line decoder/demultiplexer with open collector outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)

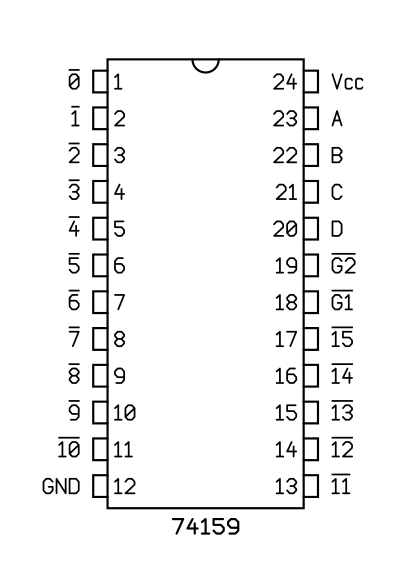

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74159N
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
