Name:
74136
Short description:
Quadruple 2-input Exclusive-OR gates with open collector outputs
Symbol:

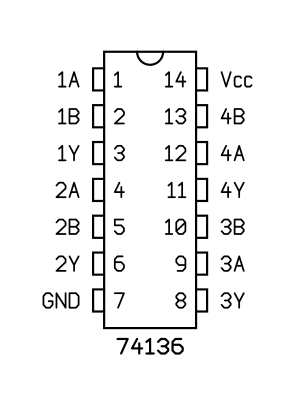

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14N (JEDEC MS-001, Variation AA)
Vendor
Part number / Specifications
Texas Instruments
SN74136N
