8255
Programmable Peripheral Interface
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

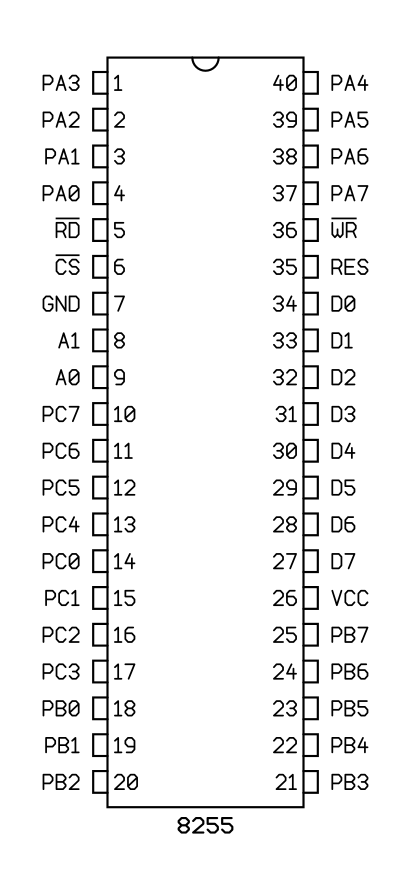

Pinout
Manufacturer:
Rochester Electronics
Part number:
P8255A
Manufacturer:
Rochester Electronics
Part number:
P8255A-5
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
