Name:7454
Short description:2-2-2-2-input AND-OR-INVERT gate

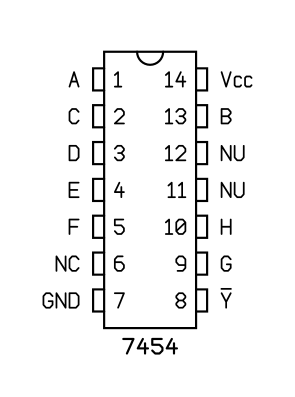

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN7454N
