7446
BCD to 7-segment decoder/driver with open collector outputs
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

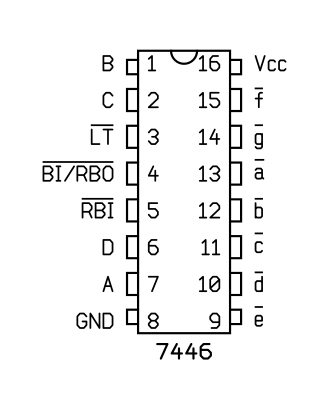

Pinout
Manufacturer:
Texas Instruments
Part number:
SN7446AN
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
