7437
Quad 2-input NAND buffers
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

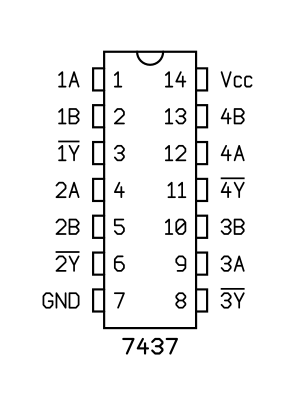

Pinout
Manufacturer:
Texas Instruments
Part number:
SN7437N
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
