Name:7414
Short description:Hex Schmitt-Trigger Inverters

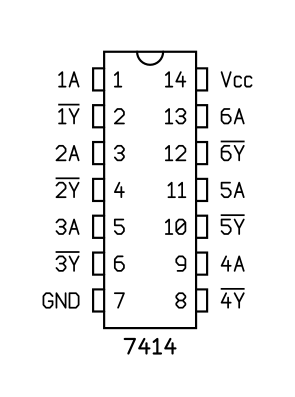

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN7414N
