7401
Quad 2-Input NAND gate with open-collector output

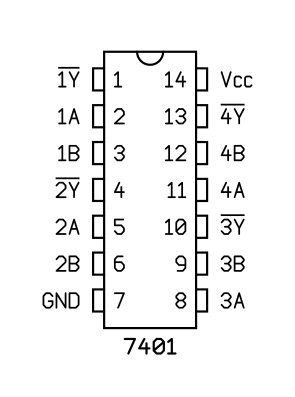

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN7401N
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
