Name:74LS96
Short description:5-bit shift register with parallel-in and parallel-out

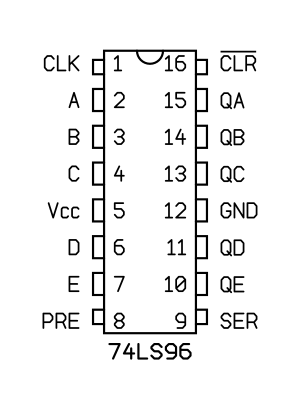

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS96N
