Name:74LS86
Short description:Quadruple 2-input exclusive-OR gates

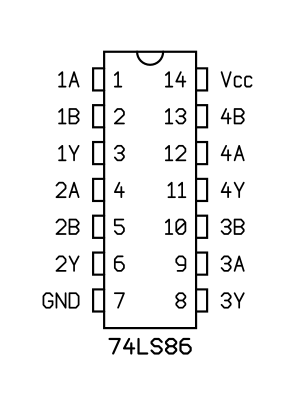

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS86AN
