Name:74LS77
Short description:4-bit bistable latches

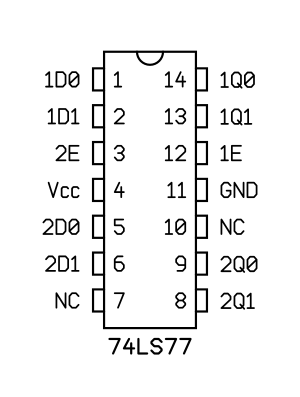

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
MotorolaSN74LS77
