Name:74LS74
Short description:Dual D-type positive-edge-triggered flip flops with preset and clear

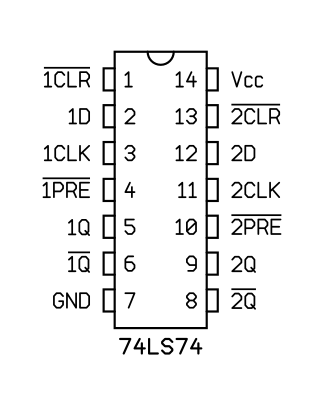

Symbol:

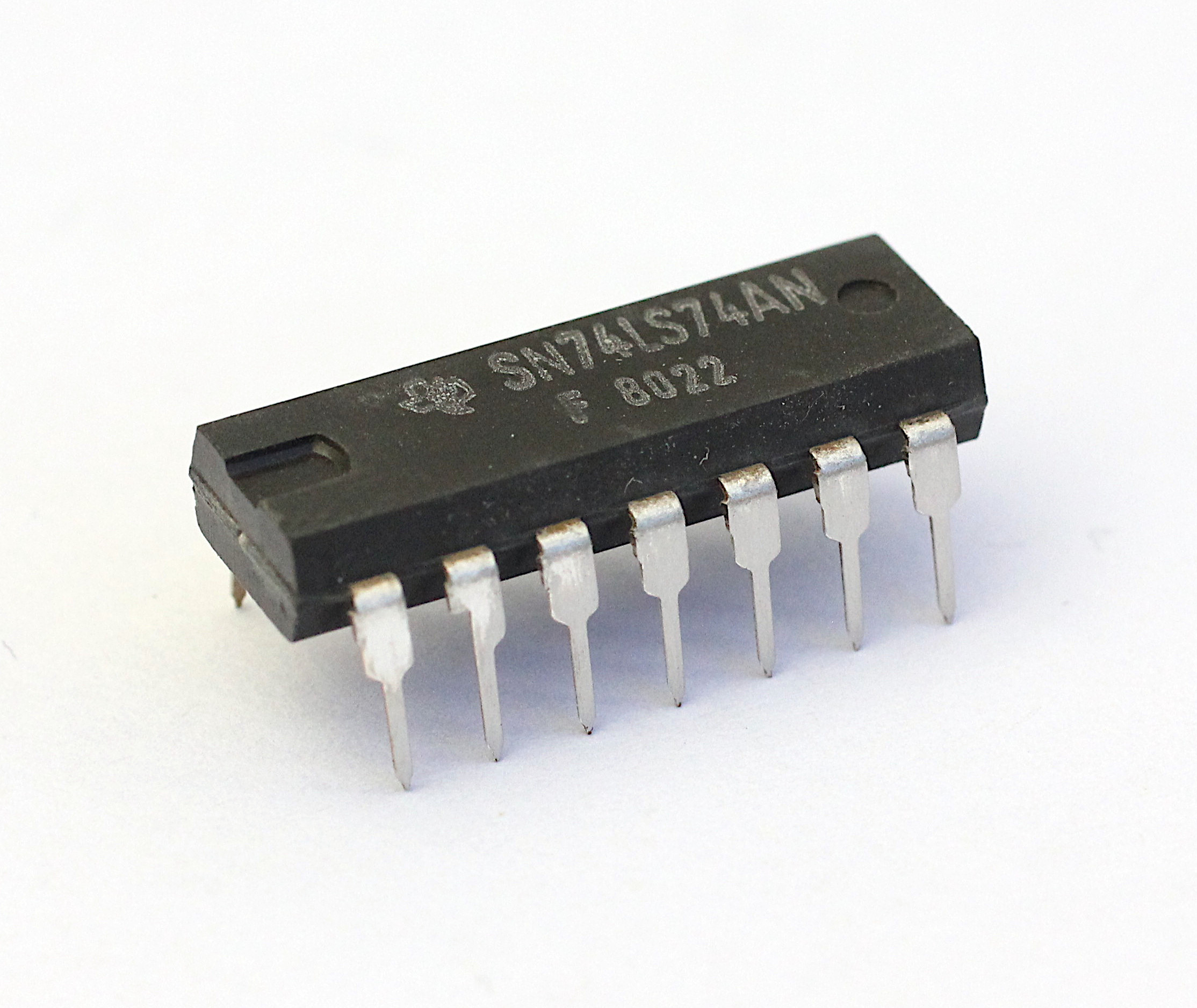

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS74AN
