Name:74LS55
Short description:4-4-input AND-OR-Invert gate

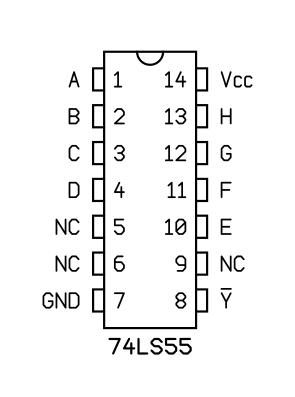

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS55N
