Name:74LS48
Short description:BCD to 7-segment decoder with internal pull-up resistors

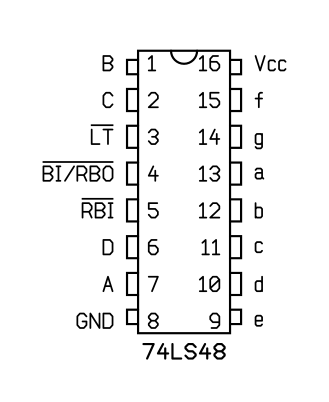

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS48N
