Name:74LS30
Short description:Single 8-input NAND gate

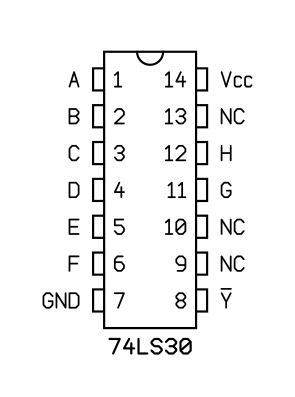

Symbol:

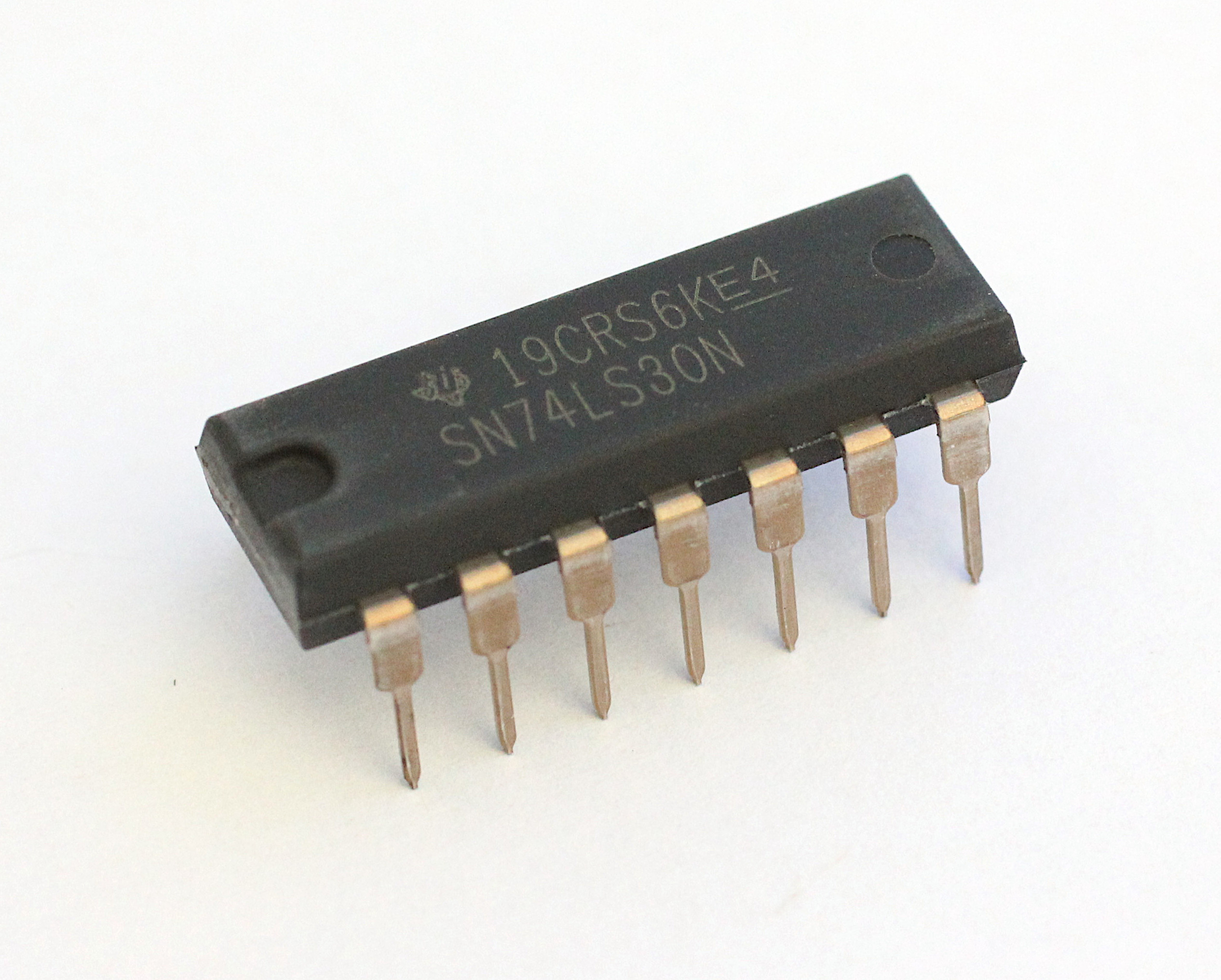

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS30N
