Name:74LS26
Short description:Quad 2-input NAND gate with hight-voltage open-collector outputs

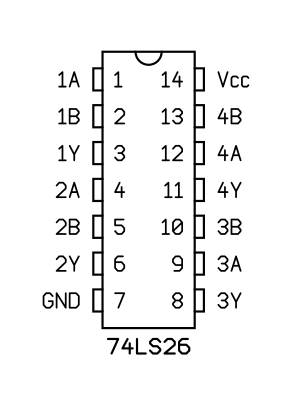

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS26N
