Name:74LS04
Short description:Hex inverter gate

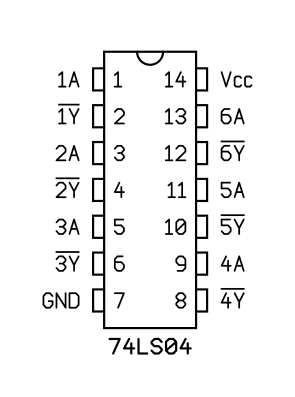

Symbol:

PDIP-14N (JEDEC MS-001, Variation AA)

VendorPart number / Specifications
Texas InstrumentsSN74LS04N
