4017
5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry out bit
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

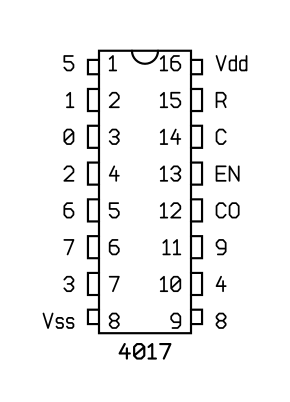

Pinout
Manufacturer:
Texas Instruments
Part number:
CD4017BE
Manufacturer:
NXP Semiconductors
Part number:
HEF4017BP
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
SO16
Manufacturer:
NXP Semiconductors
Part number:
HEF4017BT
