74HC595
8-bit serial-in, serial or parallel-out shift register with output latches; 3-state
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

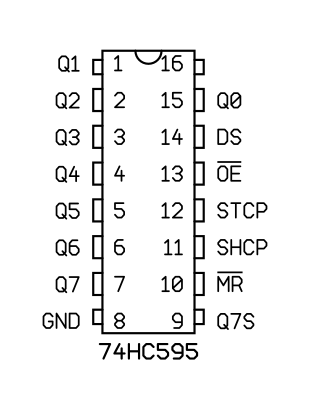

Pinout
Manufacturer:
NXP Semiconductors
Part number:
74HC595N
Manufacturer:
Fairchild Semiconductor
Part number:
MM74HC595N
Manufacturer:
Texas Instruments
Part number:
SN74HC595N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
