Name:6560-201
Short description:NTSC Video Interface Chip with horizontal and vertical counters reset option
Symbol:
Pinout: Default Style: GOST

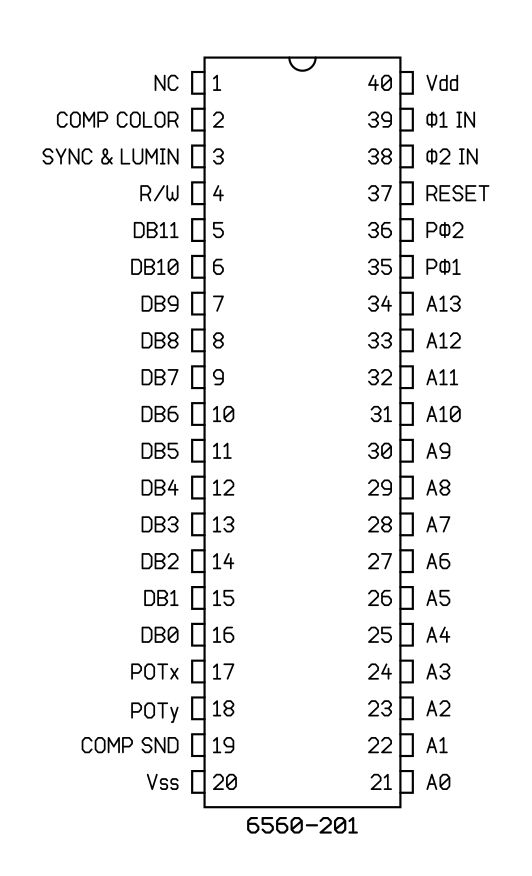

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications
MOS TechnologyMCS6560-201
