Category:
Name:74LS607
Short description:Octal 2-input multiplexed latches with open collector outputs
Symbol:

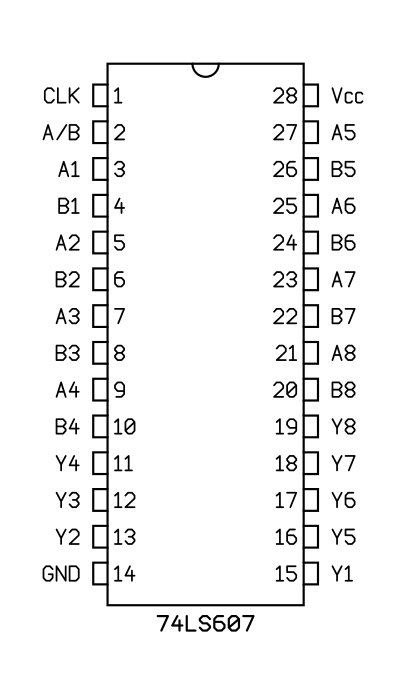

Pinout: Default Style: GOST

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS607N
