Name:74LS606
Short description:Octal 2-input multiplexed latches with 3-state outputs
Symbol:
Pinout: Default Style: GOST

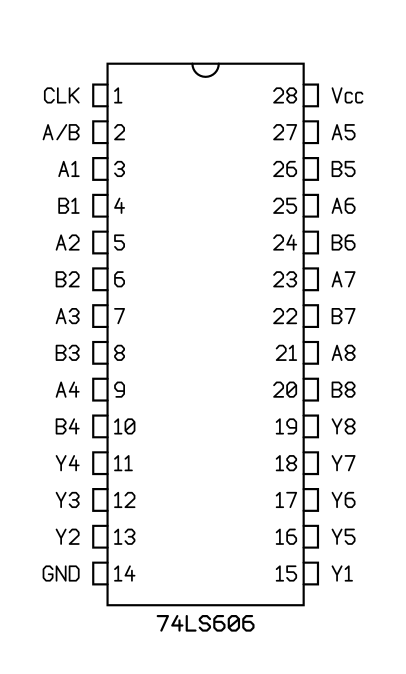

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS606N
