Name:74LS540
Short description:Octal inverting buffer and line driver with 3-state outputs
Symbol:
Pinout: Default Style: GOST

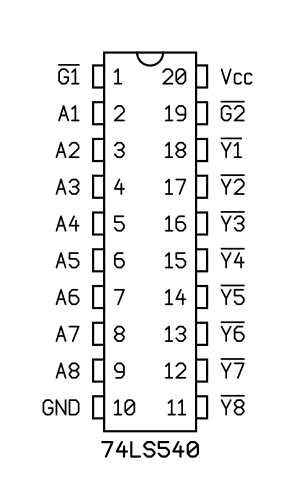

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS540N
