Name:74LS444
Short description:Quadruple tridirectional inverting and non-inverting bus transceiver with 3-state outputs
Symbol:
Pinout: Default Style: GOST

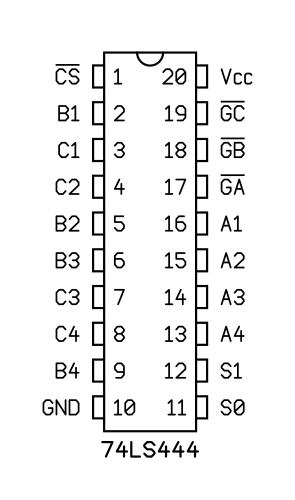

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS444N
