Name:
74LS356
Short description:
8-line to 1-line data selector/multiplexer, edge triggered register with 3-state outputs
Symbol:

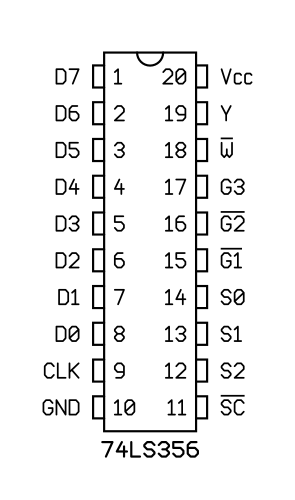

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20N (JEDEC MS-001, Variation AD)
Vendor
Part number / Specifications
Texas Instruments
SN74LS356N
