Name:74LS355
Short description:8-line to 1-line data selector/multiplexer, transparent register with open collector outputs
Symbol:
Pinout: Default Style: GOST

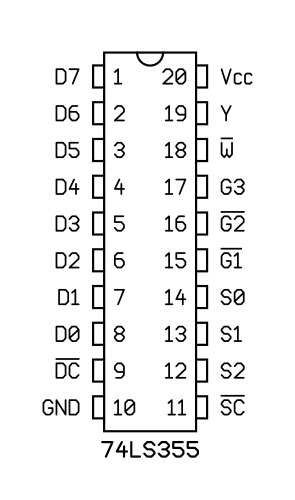

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS355N
