Name:74LS347
Short description:BCD-To-Seven-Segment decoder/driver with open-collector active-low outputs
Symbol:
Pinout: Default Style: GOST

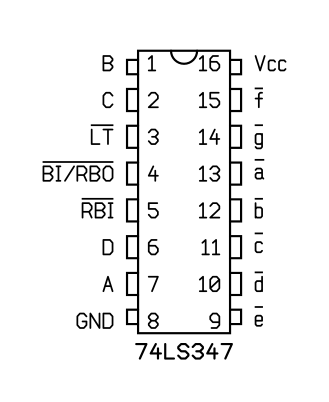

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS347N
