Name:74LS292
Short description:Programmable frequency divider and digital timer
Symbol:
Pinout: Default Style: GOST

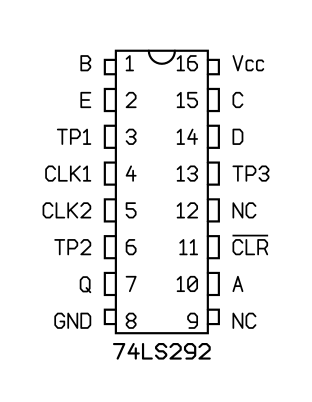

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS292N
