Name:74LS259
Short description:8-bit addressable latch
Symbol:
Pinout: Default Style: GOST

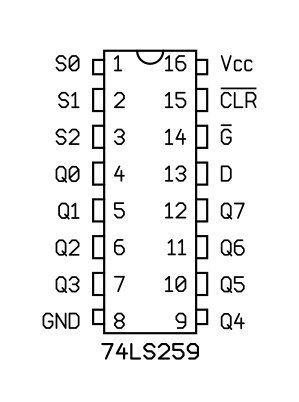

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS259BN
