Name:74LS258
Short description:Quadruple 2-line to 1-line data selector/multiplexer with inverting outputs
Symbol:
Pinout: Default Style: GOST

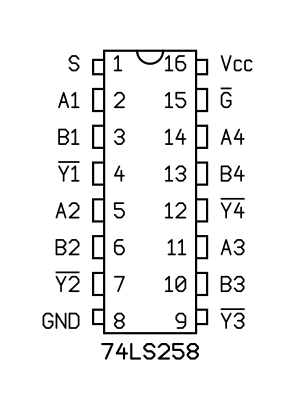

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS258BN
