Name:74LS257
Short description:Quadruple 2-line to 1-line data selector/multiplexer
Symbol:

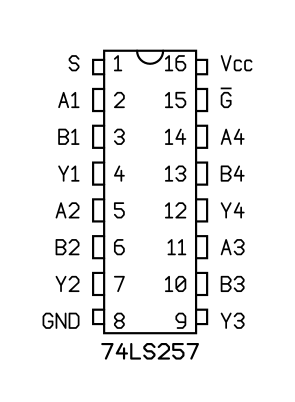

Pinout: Default Style: GOST

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS257BN
