Name:74LS253
Short description:Dual 4-line to 1-line data selector/multiplexer with 3-state outputs
Symbol:
Pinout: Default Style: GOST

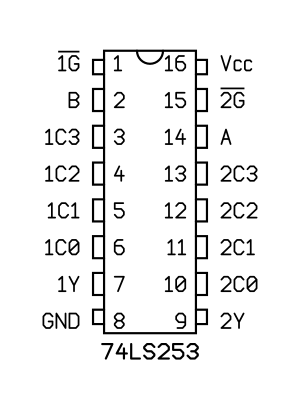

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS253N
