Name:74LS247
Short description:BCD to seven-segment decoder/driver
Symbol:

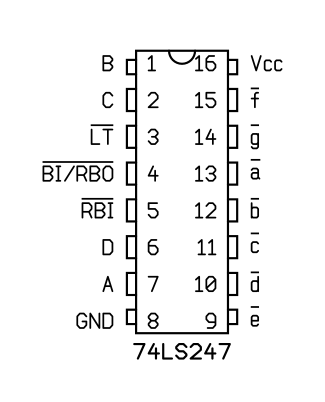

Pinout: Default Style: GOST

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS247N
