Name:74LS245
Short description:Octal Bus Transceiver With 3-State Outputs

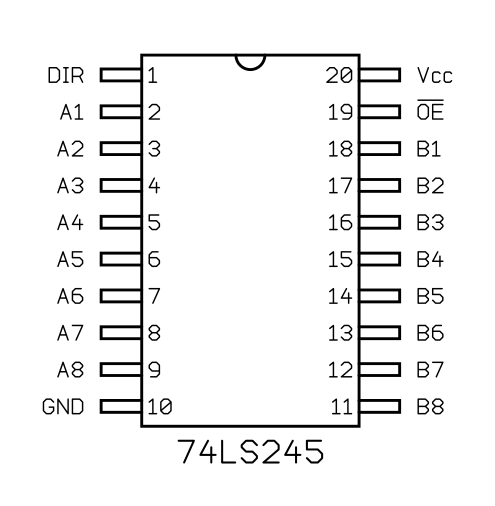

Symbol:
Pinout: Default Style: GOST

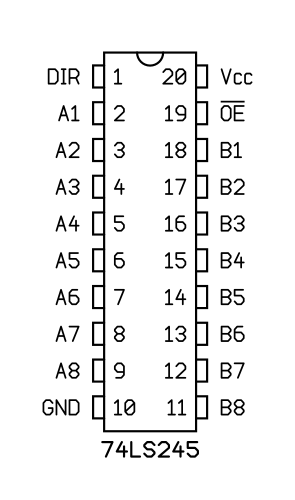

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS245N

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
Texas InstrumentsSN74LS245DWR

SSOP-20 (JEDEC MO-150, variation AE)

VendorPart number / Specifications
Texas InstrumentsSN74LS245DBR
