Name:7420
Short description:Dual 4-input NAND gate
Symbol:

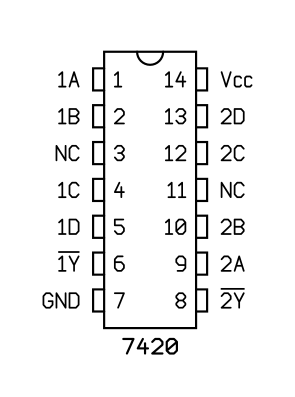

Pinout: Default Style: GOST

PDIP-14N (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN7420N
