Name:74LS195
Short description:4-bit parallel-access shift register
Symbol:
Pinout: Default Style: GOST

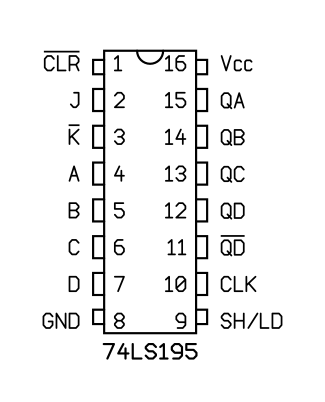

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS195AN
