Name:74LS174
Short description:Hex D-type Flip-Flops with clear
Symbol:
Pinout: Default Style: GOST

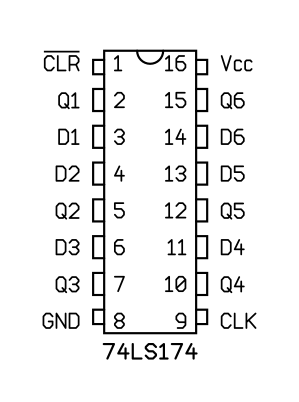

PDIP-16 (JEDEC MS-001, Variation BB) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS174N
