Name:74LS170
Short description:4-by-4 register file with open collector output

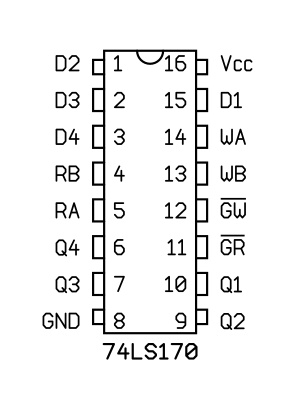

Symbol:

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS170N
