Name:74LS166
Short description:Parallel load 8-bit shift register with clear
Symbol:

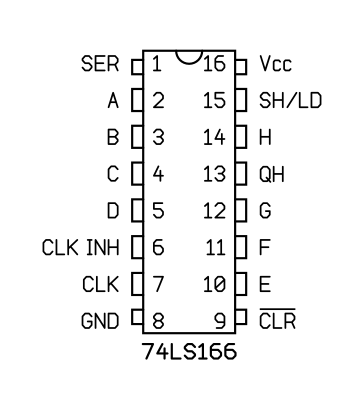

PDIP-16N (JEDEC MS-001, Variation AB)

VendorPart number / Specifications
Texas InstrumentsSN74LS166AN
